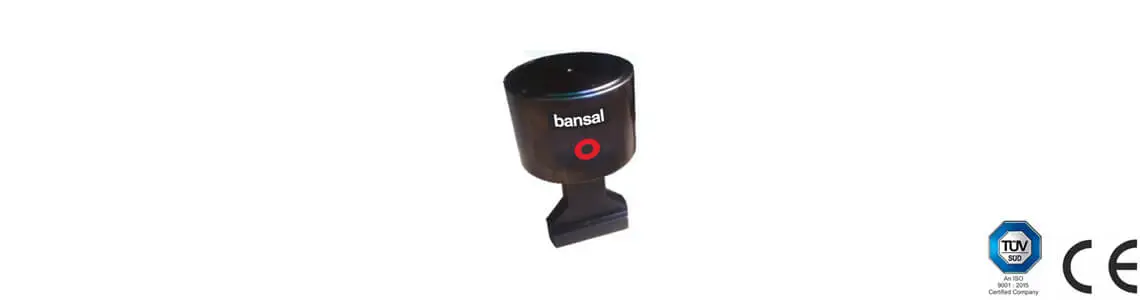

Hydraulic Die Clamp (Piston Type)

MODEL   bTA – 01 bTA – 02 bTA – 04 bTA – 06 bTA – 10 bTA – 16 bTA – 25
Clamping Force tons 1 2 4 6 10 16 25
Full Stroke (X) mm 6 8 8 8 8 8 8
Clamping Stroke (Y) mm 3 4 4 4 4 4 4
Clamp OD (Min) mm 40 53 65 82 90 126 150
