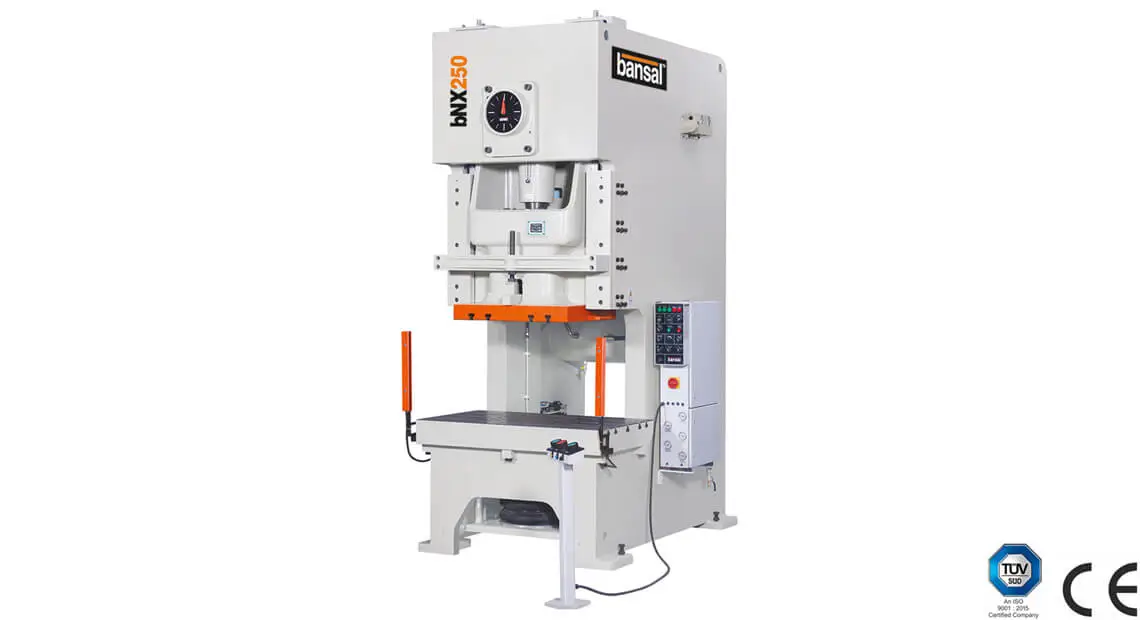

bNX Series C Frame Cross Shaft Power Press

Features

  • Center Guiding of Slide with extra long & surface area provides best possible resistance to slide tripping caused by off center loading in the die.
  • Stronger & symmertic frame construction provides less deflection.
  • High Torque pneumatically operated single disc combined clutch & break.
  • Precise & Vibration Free Transmission and high rigidity crank ensures press long life and accuracy.
  • User friendly design & functions.
THE ULTIMATE POSSIBLE RESISTANCE TO SLIDE TIPPING & OFF CENTER LOADING
These guide are designed with extra length & surface area to provide best possible resistance to slide tipping caused by off center loading in the die and most suitable for highly precise pressing applications. This increases too life.
SPECIFICATIONS MODEL
bNX – 35 bNX – 45 bNX – 60 bNX – 80 bNX – 110 bNX – 160 bNX – 200 bNX – 250
Type SG HG NG SG HG NG SG HG NG SG HG SG HG SG HG SG HG SG HG
Capacity tf 35 Tonne 45 Tonne 60 Tonne 80 Tonne 110 Tonne 160 Tonne 200 Tonne 250 Tonne
Stroke Length Fixed mm 80 40 40 90 50 40 120 50 40 140 60 160 60 200 80 220 80 250 100
Variable mm 8~80 – – 8~90 – – 8~100 – – 8~100 – 8~125 – 20~160 – – – – –
Speed Fixed SPM 80 100 130 70 90 130 60 90 130 60 90 50 80 40 60 35 60 30 50
Variable 70~90 70~120 80~160 60~80 70~110 80~160 50~70 70~110 80~160 50~70 70~110 40~60 70~110 30~50 40~80 25~45 40~80 20~35 30~70
Rating Point mm 3.2 2.5 2.3 3.2 2.6 2.3 4.0 2.6 2.3 4.5 3.0 5.0 3.0 6.0 4.0 6.0 4.0 7.0 4.0
Bolster Area (LR X FB) mm 780 X 40 840 X 450 900 X 520 1050 X 600 1150 X 680 1250 X 780 1410 X 840 1540 X 900
Bolster Thickness mm 85 110 120 130 140 165 180 180
Die Height mm 250 270 300 330 360 450 500 500
Slide Area (LRxFB) mm 380 X 300 430 X 350 480 X 400 560 X 460 650 X 520 720 X 580 860 X 680 950 X 800
Slide Adjustment mm 50 60 75 75 90 100 120 120
Throat Depth mm 210 235 270 310 350 390 435 465
Upright Distance mm 490 530 570 600 670 770 920 940
Main Motor Fixed HPXP 3 X 4 3 X 6 5 X 4 5 X 6 7.5 X 4 7.5 X 6 10 X 4 10 X 4 15 X 4 20 X 4 25 X 4
Variable 5 X 4 7.5 X 4 10 X 4 15 X 4 15 X 4 20 X 4 25 X 4 30 X 4
Floor to Bolster mm 800 800 900 900 900 900 1000 1000
Foot Size mm 830 X 1155 890 X 1235 950 X 1400 1070 X 1490 1220 X 1690 1330 X 1980 1490 X 2350 1640 X 2395
Anchor Bolt Size mm 730 X 955 790 X 1035 850 X 1150 970 X 1240 1110 X 1390 1200 X 1650 1370 X 1765 1510 X 2005
Overall Space (W X D X H) mm 1000 X 1260 X 2340 1060 X 1400 X 2400 1130 X 1500 X 2650 1230 X 1700 X 2785 1310 X 1830 X 3060 1450 X 2135 X 3450 1620 X 2270 3850 1680 X 2540 X 4025
OPTIONAL
Pneumatic Die Cushion Tonnage tf 3.5 3.5 6 6 8 10 12 14
Stroke mm 50 50 70 70 90 100 110 110
Pad Area mm 300 X 205 325 X 230 380 X 260 380 X 260 480 X 340 540 X 340 640 X 440 640 X 440
bNX-110, 160, 200, 250 ARE WITHOUT SHANK HOLDER
Material and Specifications are subject to change without notice.
SG = Standard Geared / HG = High Speed Geared / NG = Non Geared

Standard Accessories

  • Motorised Grease Lubrication
  • Counter Balancers for Slide and Upper Die Balance
  • Rotary Cam Limit Switch
  • Anti-Repeat Safety through PLC
  • Dual Solenoid Valve
  • 24V DC Electrical Control Panel
  • PLC with HMI
  • Hydraulic Overload Safety
  • Digital Die Height Indicator
  • Motorised Slide Adjustment (60T & above)
  • Miss Feed Sockets
  • Air Outlets
  • Foot Switch
  • Knockout System
  • Photo Electric Safety Guard
  • Anti-Vibration Mount
  • Die Area Light

Optional Accessories

  • Variable Stroke
  • Pneumatic Die Cushion
  • Programmable Cam Controller
  • Variable Speed Thru VFD
  • Quick Die Change System (QDCS)
  • Automation Line & Accessories
  • Portable Operator Stand
  • Wet Clutch
  • Load Monitor
  • Power Take Off Shaft
