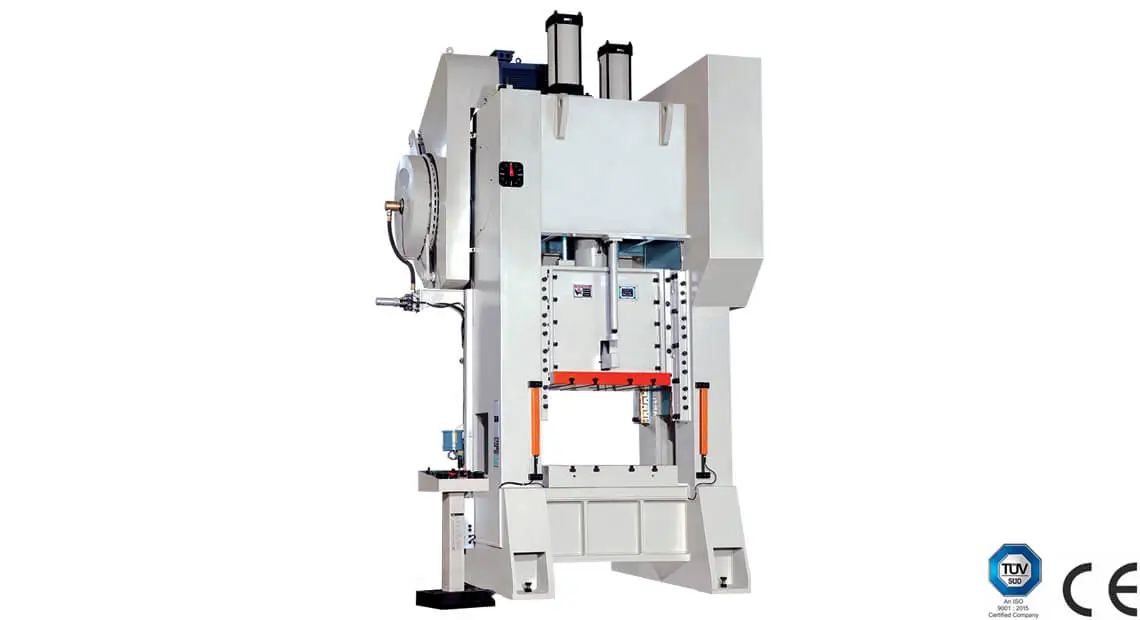

bSH Series Straight Sided Left to Right Power Press

Features

  • Monolithic rigid frame construction ensures less deflection
  • Precise 8 Point long guide ways with renewable bronze liners ensure high accuracy
  • Accurate & Vibration free oil both transmission and high rigidity crank ensure press long life & accuracy
  • Eccentric shaft and wrist pin can be offered as oponal
SPECIFICATIONSMODEL
bSH – 110bSH – 116bSH – 200bSH – 250bSH – 350bSH – 400
TypeSGHGSGHGSGHGSGHGSGHGSGHG
Capacitytf110 Tonne116 Tonne200 Tonne250 Tonne350 Tonne400 Tonne
Stroke Length (Fixed)mm160602008022080250100280120280120
SpeedFixedspm508040604060305025502550
Variablespm 40~6070~11030~5040~8025~4540~8020~3530~7015~3030~6015~3025~60
Rating Pointmm5.03.06.04.06.04.07.04.08.05.08.05.0
Bolster Area (LR X FB)mm800 X 700900 X 800950 X 8501000 X 9001100 X 10001200 X 1000
Bolster Thicknessmm135165175175190200
Die Heightmm360450500500600650
Slide Area (LRxFB)mm700 X 600800 X 700850 X 800900 X 8501000 X 9501100 X 950
Slide Adjustmentmm90100100120120120
Side Opening ( W X H )mm350 X 450350 X 450350 X 450400 X 500400 X 500400 X 500
Upright Distancemm490540570650720810
Main MotorFixedHPXP10 X 415 X 420 X 425 X 430 X 430 X 4
Variable15 X 420 X 425 X 430 X 440 X 440 X 4
Floor to Bolstermm900900900100010001000
Foot Sizemm1260 X 14801530 X 16701600 X 17501710 X 19801950 X 23002050 X 2350
Overall Space (W X D X H)mm2850 X 1730 X 32003070 X 1850 X 40203200 X 2000 X 41503380 X 2200 X 42003560 X 2400 X 47503700 X 2500 X 4850
OPTIONAL
Pneumatic
Die Cushion		Capacitytf81012142828
Strokemm90100110110120120
Pad Areamm480 X 340540 X 340640 X 440640 X 440800 X 500800 X 500
bSH – ALL MODELS ARE WITHOUT SHANK HOLDER
Material and Specifications are subject to change without notice.
SG = Standard Geared / HG = High Speed Geared

Standard Accessories

  • Motorised Grease Lubrication
  • Counter Balancers for Slide and Upper Die Balance
  • Rotary Cam Limit Switch
  • Anti-Repeat Safety through PLC
  • Dual Solenoid Valve
  • 24V DC Electrical Control Panel
  • PLC with HMI
  • Hydraulic Overload Safety
  • Digital Die Height Indicator
  • Motorised Slide Adjustment (60T & above)
  • Miss Feed Sockets
  • Air Outlets
  • Foot Switch
  • Knockout System
  • Photo Electric Safety Guard
  • Anti-Vibration Mount
  • Die Area Light

Optional Accessories

  • Variable Stroke
  • Pneumatic Die Cushion
  • Programmable Cam Controller
  • Variable Speed Thru VFD
  • Quick Die Change System (QDCS)
  • Automation Line & Accessories
  • Portable Operator Stand
  • Wet Clutch
  • Load Monitor
  • Power Take Off Shaft
