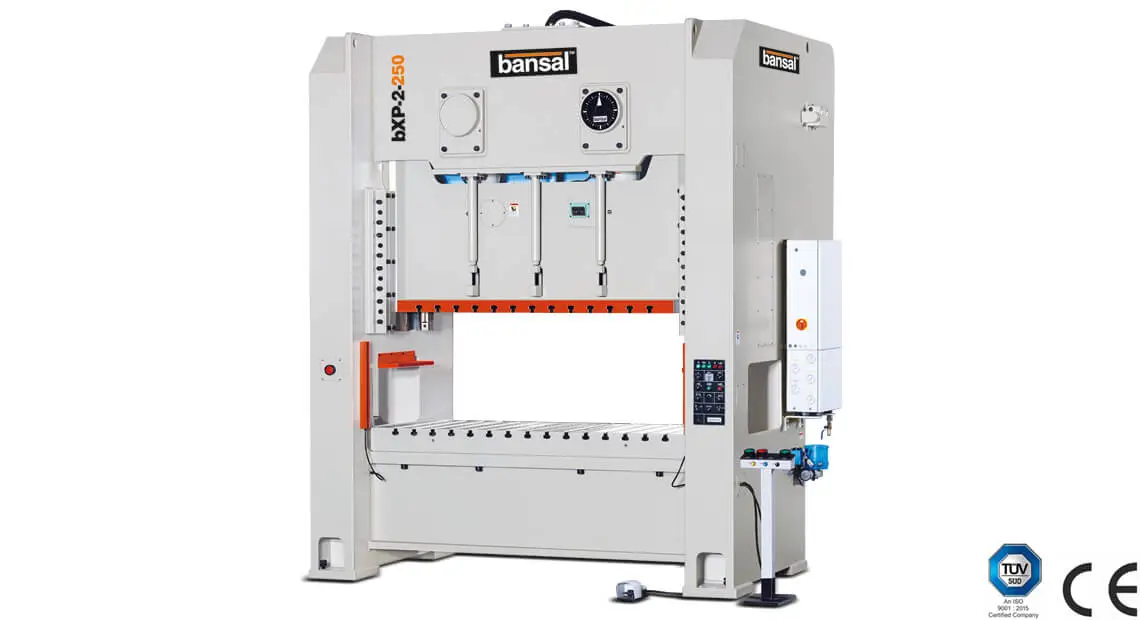

bXP-2 Series Straight Sided Double Crank Press

Features

  • The symmetrical H Frame structure designed to resist deflection and is most suitable for progressive die application
  • Increase permissible off centre loads
  • High torque wet clutch break unit requires minimum maintenance, less air consumption, eliminates noise and significantly extends lining life (optional)
  • These presses are most suitable for white goods & automobile components manufacturing

SPECIFICATIONS MODEL
bXP2 – 110 bXP2 – 160 bXP2 – 200 bXP2 – 250 bXP2 – 315 bXP2 – 400 bXP2 – 500
Type SG HG SG HG SG HG SG HG SG HG SG HG SG HG
Capacity tf 110 Tonne 160 Tonne 200 Tonne 250 Tonne 315 Tonne 400 Tonne 500 Tonne
Stroke Length Fixed mm 160 100 200 130 220 150 250 180 280 180 300 200 300 200
Speed Fixed SPM 50 80 40 60 35 50 30 45 30 40 25 35 25 35
Variable 40~60 60~100 30~50 40~80 25~45 35~70 20~35 30~60 20~35 25~50 15~30 25~50 15~30 25~50
Rating Point mm 5.0 3.0 6.0 4.0 7.0 4.0 7.0 5.0 8.0 5.0 8.0 6.0 9.0 6.0
Bolster Area (LR X FB) mm 1600 X 680 1800 X 800 2200 X 900 2500 X 950 2500 X 1000 2500 X 1100 2500 X 1200
Bolster Thickness mm 135 160 170 180 190 200 200
Die Height mm 400 450 500 550 550 600 600
Slide Area (LRxFB) mm 1350 X 600 1560 X 700 1850 X 800 2100 X 850 2100 X 900 2200 X 1000 2200 X 1100
Slide Adjustment mm 75 75 90 90 100 120 120
Side Opening ( W X H ) mm 450 X 400 500 X 400 600 X 450 650 X 450 700 X 500 800 X 550 800 X 550
Upright Distance mm 1660 1860 2270 2570 2570 2570 2570
Main Motor Fixed Speed HPXP 10 X 4 15 X 4 20 X 4 25 X 4 30 X 4 40 X 4 50 X 4
Variable Speed HPXP 15 X 4 20 X 4 25 X 4 30 X 4 40 X 4 50 X 4 60 X 4
Floor to Bolster Top mm 900 900 1000 1000 1000 1100 1100
Foot Size (LR X FB) mm 2080 X 1200 2340 X 1350 2810 X 1550 3200 X 1600 3200 X 1760 3300 X 1950 3330 X 2050
Overall Space (W X D X H) mm 2880 X 2100 X 3100 3190 X 2300 X 3450 3660 X 2450 X 3900 3990 X 2700 X 4050 4050 X 2850 X 4250 4100 X 3000 X 4400 4130 X 3150 X 4650
OPTIONAL
Pneumatic Die Cushion Capacity tf 6 X 2 8 X 2 10 X 2 10 X 2 14 X 2 14 X 2 14 X 2
Stroke Length mm 90 100 120 120 140 140 140
Pad Area mm 480 X 300 X 2 560 X 370 X 2 700 X 450 X 2 700 X 450 X 2 700 X 450 X 2 700 X 450 X 2 700 X 450 X 2
bXP2 – ALL MODELS ARE WITHOUT SHANK HOLDER
Material and Specifications are subject to change without notice.
SG = Standard Geared / HG = High Speed Geared

Standard Accessories

  • Motorised Grease Lubrication (PLC Controlled)
  • Counter Balancer for Slide
  • Rotary Cam Limit Switch
  • Anti Repeat Safety through PLC
  • Dual Solenoid Valve with Silencer
  • 24V DC Electrical Control Panel
  • PLC with HMI
  • Hydraulic Overload Safety
  • Digital Die Height Indicator
  • Motorised Slide Adjustment
  • Miss Feed Sockets
  • Air Outlets
  • Foot Switch
  • Knockout System
  • Photo Electric Safety Guard
  • Anti-Vibration Mount
  • Die Area Light

Optional Accessories

  • Pneumatic Die Cushion
  • Programmable Cam Controller
  • Variable Speed Thru VFD
  • Quick Die Change System
  • Automation Line & Accessories
  • Wet Clutch
  • Load Monitor
