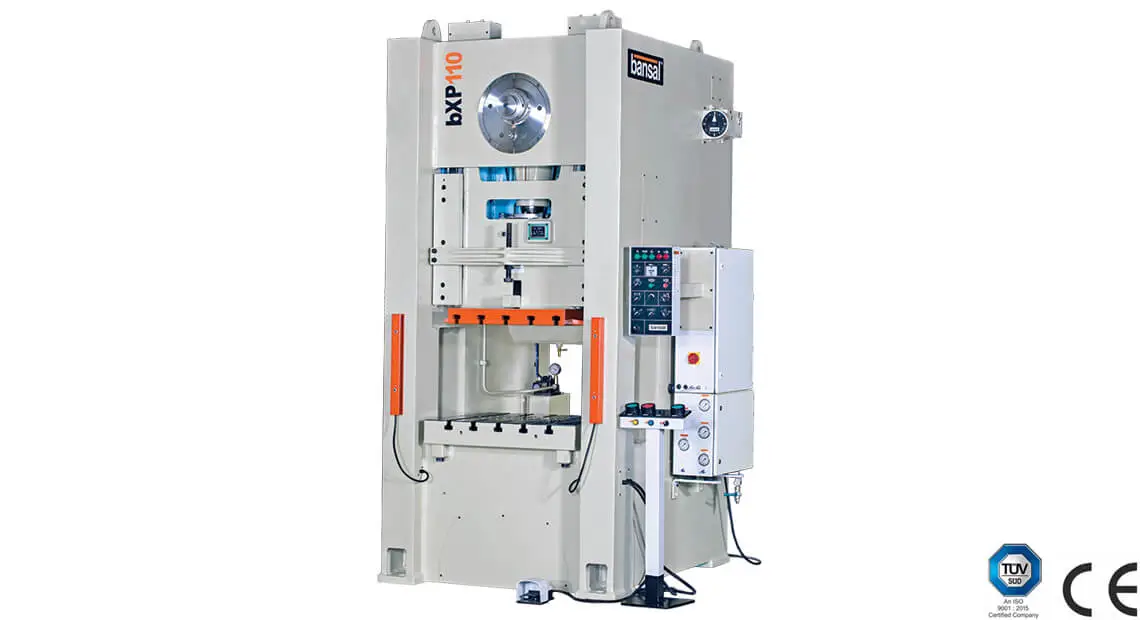

bXP Series Straight Sided Power Press

Features

  • Straight side frame design eliminates angular deflection
  • High Torque pneumacally operated single disc combined clutch & break
  • Precise & Vibration Free Transmission and high rigidity crank ensures press long life and accuracy
  • User friendly design & functions
  • Eccentric shaft and wrist psn can be offered as oponal

SPECIFICATIONS MODEL
bXP – 110 bXP – 160 bXP – 200 bXP – 250 bXP – 350 bXP – 400 bXP – 500
Type SG HG SG HG SG HG SG HG SG SG SG
Capacity tf 110 Tonne 160 Tonne 200 Tonne 250 Tonne 350 Tonne 400 Tonne 500 Tonne
Stroke Length Fixed mm 160 60 200 80 220 80 250 100 280 300 300
Variable mm 8~125 – 12~160 – – – – – – – –
Speed Fixed SPM 50 80 40 60 35 60 30 50 25 25 25
Variable 40~60 70~110 30~50 40~80 25~45 40~80 20~35 30~70 15~30 15~30 15~30
Rating Point mm 5.0 3.0 6.0 4.0 6.0 4.0 7.0 4.0 8.0 8.0 8.0
Bolster Area (LR X FB) mm 900 X 800 1000 X 900 1000 X 900 1100 X 1000 1400 X 1100 1500 X 1100 1500 X 1100
Bolster Thickness mm 135 165 175 175 190 200 200
Die Height mm 400 500 500 550 600 700 700
Slide Area (LRxFB) mm 700 X 650 800 X 750 800 X 750 950 X 800 1200 X 900 1250 X 950 1250 X 950
Slide Adjustment mm 90 100 120 120 120 120 120
Side Opening ( W X H ) mm 320 X 500 400 X 550 400 X 550 425 X 600 425 X 600 450 X 650 450 X 650
Upright Distance mm 980 1090 1230 1380 1480 1600 1600
Main Motor Fixed HPXP 10 X 4 15 X 4 20 X 4 25 X 4 30 X 4 40 X 4 50 X 4
Variable 15 X 4 20 X 4 25 X 4 30 X 4 40 X 4 50 X 4 60 X 4
Floor to Bolster mm 900 900 1000 1000 1000 1100 1100
Foot Size mm 1420 X 1620 1595 X 1840 1770 X 1940 2020 X 2200 2240 X 2550 2350 X 2650 2350 X 2650
Overall Space (W X D X H) mm 2550 X 1755 X 3100 2720 X 1900 X 3450 2880 X 2000 X 3900 3170 X 2300 X 4050 3270 X 2540 X 4250 3370 X 2650 X 4400 3370 X 2650 X 4650
OPTIONAL
Pneumatic Die Cushion Capacity tf 8 10 12 14 28 28 28
Stroke mm 90 100 110 110 120 120 120
Pad Area mm 480 X 340 540 X 340 640 X 400 640 X 440 800 X 500 800 X 500 800 X 500
bXP – ALL MODELS ARE WITHOUT SHANK HOLDER
Material and Specifications are subject to change without notice.
SG = Standard Geared / HG = High Speed Geared

Standard Accessories

  • Motorised Grease Lubrication
  • Counter Balancers for Slide and Upper Die Balance
  • Rotary Cam Limit Switch
  • Anti-Repeat Safety through PLC
  • Dual Solenoid Valve
  • 24V DC Electrical Control Panel
  • PLC with HMI
  • Hydraulic Overload Safety
  • Digital Die Height Indicator
  • Motorised Slide Adjustment (60T & above)
  • Miss Feed Sockets
  • Air Outlets
  • Foot Switch
  • Knockout System
  • Photo Electric Safety Guard
  • Anti-Vibration Mount
  • Die Area Light

Optional Accessories

  • Variable Stroke
  • Pneumatic Die Cushion
  • Programmable Cam Controller
  • Variable Speed Thru VFD
  • Quick Die Change System (QDCS)
  • Automation Line & Accessories
  • Portable Operator Stand
  • Wet Clutch
  • Load Monitor
  • Power Take Off Shaft
